Rent · BuyAvailable now2100 lb Compact Track Loader
Compact Track Loader
$275/ day$1,090 wk · $2,695 mo
SDLG · Compact track loader
SDLG TV1100H · 4.6 t
Available now
1 / 3 · The machineAbout this machine
A 2026 compact track loader, inspected at the Surrey yard. Rent it by the day, week or month — delivered, fuelled and inspected. Buy it outright, or finance it through Blue Capital.
- Yanmar engine with 72 hp for real pushing and lifting power.
- Sealed one-piece cab: air-suspension seat, keyless start, radio, Bluetooth, hands-free phone.
- 7-inch touch screen with a built-in rear-view camera.
- Two-speed travel, ISO/H pattern switch, reversing fan and cruise control as standard.
- High-flow hydraulics, with pressure and flow set from the screen for each attachment.
- Tilt-up cab and rear door for easy daily service.
Rent it, buy it, finance it
Specifications
Source: SDLG 2026 brochureIdentity
- Stock number
- NL-BDCA1B
- Make
- SDLG
- Model
- TV1100H
- Type
- Compact track loader
- Class
- Earth Moving
- Year
- 2026
- Condition
- New
Engine & performance
- Operating weight
- 4,600 kg10,141 lb
- Engine
- Yanmar 4TN98CT
- Rated power
- 53.3 kW71.5 hp
- Rated speed
- 2,500 rpm
- Displacement
- 3,300 mL201.4 in³
- Max. speed
- 13.7 km/h8.5 mph
- Fuel tank
- 95 L25.1 gal
Loader
- Bucket capacity
- 0.45 m³0.59 yd³
- Rated load (35% tipping)
- 1,180 kg2,601 lb
- Max. breakout force
- 30 kN6,744 lbf
- Track width
- 400 mm15.7″

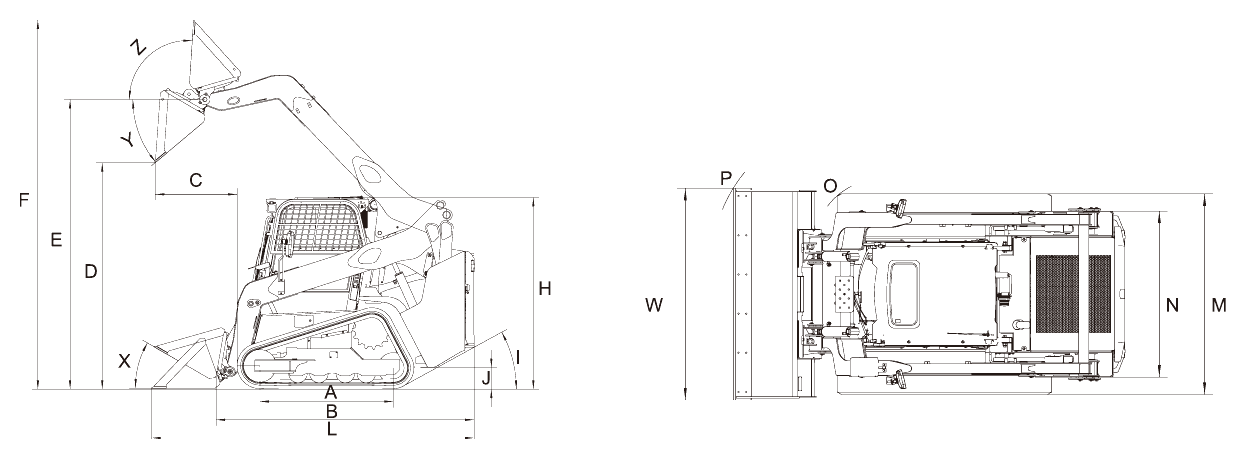

Dimensions
- LOverall length
- 3,485 mm11′5.2″
- MWidth without bucket
- 1,785 mm5′10.3″
- HHeight to top of cab
- 2,080 mm6′9.9″
- ATrack length on ground
- 1,385 mm4′6.5″
- JGround clearance
- 225 mm8.9″
- CReach at max. lift & dump
- 880 mm2′10.6″
- YMax. dump angle
- 40°
- DDump height at max. lift
- 2,435 mm7′11.9″
- OTurning radius, coupler
- 1,290 mm4′2.8″
- PTurning radius, bucket
- 2,100 mm6′10.7″
Equipment
Standard
- Yanmar 4TN98CT engine
- ROPS cab with A/C
- Air suspension seat
- Track drive, 400 mm track
- Electric control lever
- 3-spool valve
- Third hydraulic connection
- 2-speed travel, high flow
- Quick coupler
- Boom bracket
- Start interlock, safety lockout lever
- Parking brake
- LED lights (4 cab, 2 hood, 2 rear)
- LED rotating beacon
- Reverse buzzer
Factory options
- Rear-view monitor, 4 cameras
Options apply to machines ordered in. Ask what this one carries.
